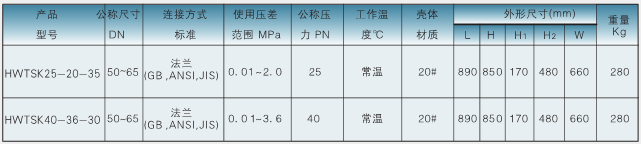

Nominal pressure (PN): 25~40
Working pressure difference (Mpa): 0.01~2.0, 0.01~3.6
Displacement (m3/h): 8~20
Connection: Flange (GB, ANSI, JIS)
Nominal size (DN): 50~65
Operating temperature: normal temperature
1. Fully automatic continuous operation, discharge when there is water, automatic shutdown when there is no water, and the discharge rate of sedimentary water (liquid) is 100%.
2. Double guidance, high action reliability, no gas leakage during operation.
3. The internal parts are all made of stainless steel, which has a long service life.
4. Good cleaning performance, wear resistance and corrosion resistance.
5. Easy installation, stable operation and convenient sewage discharge.
Application: It is suitable for the automatic discharge of sedimentary water (liquid) in the gas-water separator or natural gas storage tank of natural gas mines.
