Working medium: clean water
Operating temperature: normal temperature
Working pressure: 1.0MPa
Nominal pressure PN: PN10
Body: HT200
Float: 304 stainless steel
Body strength pressure: 1.6MPa
Air seal test pressure: 0.05MPa~1.6MPa no water leakage
(1) It can remove the gas in the pipeline, reduce the resistance, and save energy.
(2) The exhaust capacity is many times that of the ordinary double-port exhaust valve.
(3) When the pipeline is under negative pressure, this product can quickly and automatically suction to prevent the pipeline from making an exception.
(4) The float is stainless steel, which has a long service life, safe and reliable.
Product Structure:

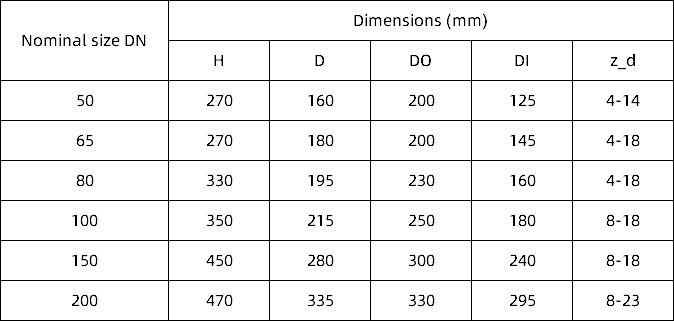

Main Dimensions:
