Pressure rating: 150Lb/300Lb
Working medium: steam, condensate
Body Material: A105
Branch type: seamless steel pipe / prefabricated insulated pipe / no branch pipe
Number of branches: 4 /6 /8 /10 /12 /14
Allowable temperature/pressure: 425°C/2.8MPa
Connection: main pipe DN40 flange, socket connection, branch pipe DN15/DN20 thread, socket welding, flange, ferrule.
The steam distribution pipe bundle is to weld multiple pipe bundle valves together, so that the steam supply is centralized, the components are standardized, the installation is simplified, and the space is saved. The components are designed to be combined into a single unit: the One-Piece Steam Distribution Bundle (HFP).
1. Save the assembly time on the engineering site.
2. Save engineering costs and procurement costs.
3. Reduce procurement and design time.
4. The design and installation are flexible and convenient, and the service life is long.
5. It is more convenient, simple and faster to replace and maintain.
6. The pipe bundle layout structure can be designed according to the special situation required by the user's site.
It is suitable for: centralized steam distribution and transportation of petroleum, chemical, metallurgy, textile, papermaking, printing and dyeing, pharmaceutical and other industrial steam systems.

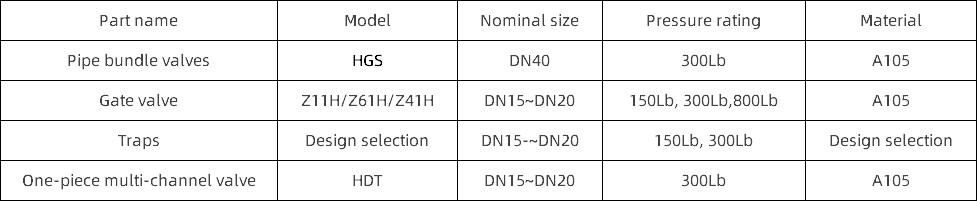

Parts & Materials:

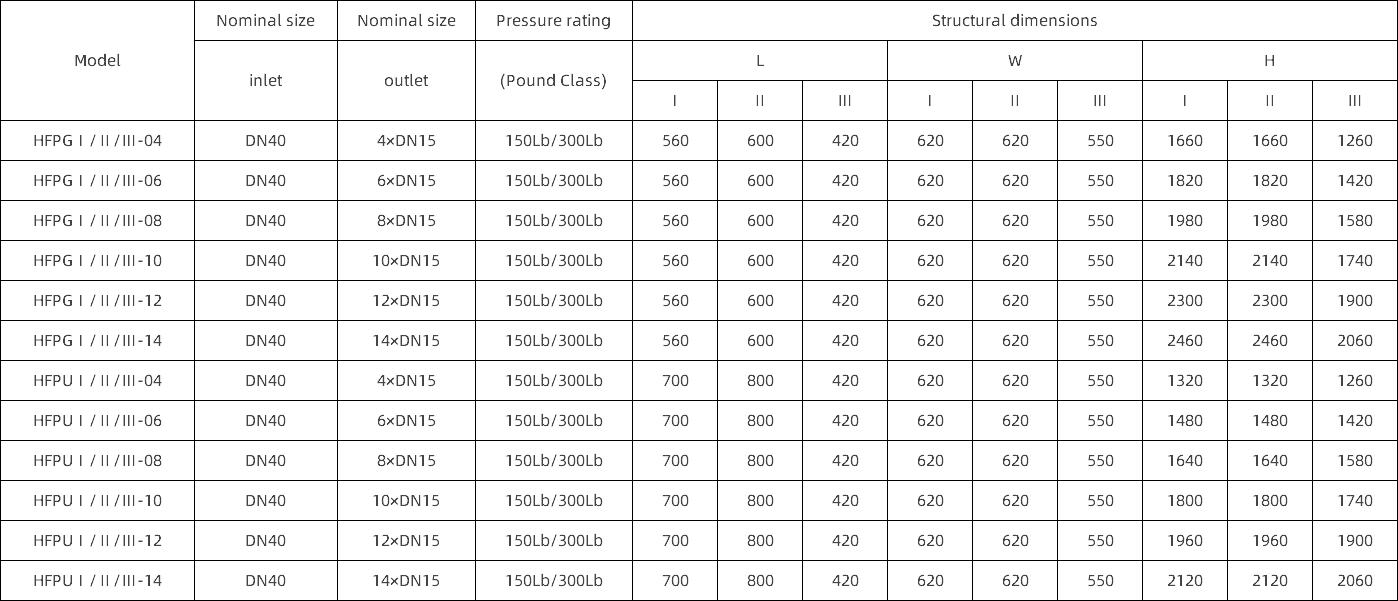

Technical Data Sheet:
